Some clarifications on the post of when the Guri dam will reach the critical level

March 8, 2010

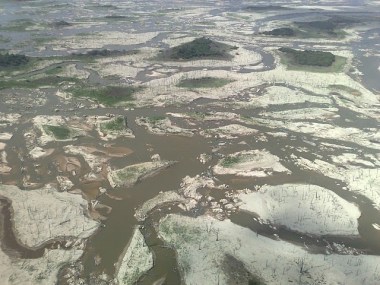

(Picture of a section of the Guri dam a few days ago)

(I still have no Internet at home, rather than answering the comments, here are some clarifications on yesterday’s post)

1- What is the critical level?

Strictky speaking is 240 meters, but it is likely to be higher. Flow may have to be restricted and you have to worry about other technical problems, so a better number may be 244-245 meters, which will occur around May 10th. if it does not rain.

2.-What is the correct question to ask?

I think it is the critical level, not when is that the water stops dropping. The reason is that if it starts raining and the daily drop rate falls from 15 centimeters to 7-8 centimeters, you push the day the level gets critical 50-100 days into the future. Historically, by the end of June, the water flow has always been above 4,000 m**3/s, thus if the rains slow down the rate thirty days, the probability is extremely high that a positive equilibrium (More flow in than out) will be reached.

3.- What about the conical shape of the dam?

The shape of the dam should be or is  in the linear fit to the historical data. How fast the water drops is a function of inflows, the shape of the dam, evaporation and height. I don’t pretend or intend to model of those, I simply note that so far the fit is extremely good. I will keep monitoring it.

4.-This is not a severe drought year due to El Niño

While this is not a great year, there have been worse. The current outflow and inflows into the dam are above the worst ones historically for the same date. El Niño is a complex phenomenon, this is not the strongest one either, nor the longest running as noted in this post in January. El Niño is simply a convenient political excuse.

5.- What about the turbines?

I have not had recent information about how many turbines are online or not. This is a separate issue. My understanding is that one can not be repaired. Another has been fixed. That leaves seven off line, last time I heard.

I was a little more optimsitic when I wrote the post that I am now. It looks like assuming “240 meters” was the wrong thing to do, it seems to be higher, thsu it is going to be quite close. However, it may not last long. My worry is that if Guri is shutdown, blackouts will affect the oil industry, supplies, communications. It could be really bad for a few days. On the positive side, there have been some rains down there, inflows have moved up to 700 m**3/sec.

This slide show of Guri about ten ago days tell you the whole story.


40 Responses to “Some clarifications on the post of when the Guri dam will reach the critical level”

  1. Rodger Farrell Says:

    Amigo Miguel:
    Now in 2016 the Guri water level is in the news again, and that has given rise to a message I sent to some friends. You know much more about all this than I do but I thought you might be interested in seeing the message. ….

    A few days ago we had said that the rate of decline of water level at
    Guri ought to increase as the level gets lower due to the conical
    shape of the lake basin, but that “for the moment I leave that
    exercise to others.”

    But who can resist these interesting challenges ??
    Who can sleep at night with this problem hanging over him ??
    How much will the rate of decline increase from its present rate of
    8.5 cm . day as the water level goes lower ??

    Here is a suggested answer to this problem for the restless souls:
    If Carlos, or anyone, finds an error, kindly let me know so that
    I do not incur in serious, irremediable trouble.


    At Guri’s normal water level of 272 meters asl (above sea level)
    the total lake area is 4,250 km 2. This area corresponds
    to an equivalent circle with radius of 36.8 km, or 36,800 m.
    That is, as far as the water is concerned, it is the same as
    would be in a perfect circle of 36,800 m radius.

    We need to estimate the slope of the sides of the lake basin.
    Looking at pictures, some places are slopier, some are flatter,
    but lets suppose the average lakeside slope is 20 degrees.
    If that is so, then for every meter the water level drops,
    the radius of the effective circle of water decreases by
    1 / (tan 20 deg) = 1 / (. 36) = 2.8 meters.
    And likewise, since the total water level decline today
    is (272 – 245) = 27 meters the total effective radius decrease
    from normal level to now is 2.8 x 27 meters = 75 meters.

    Now if the water radius has decreased 75 meters, the effective
    circle area decreases like this:

    level radius area
    272 36.800km 4 250 km2
    245 36,725km 4 235 km2
    Surface area reduction 15 km2
    % of surface area 0.3%

    The volume of the daily decline in level of 8.5 cm of water is directly
    related to the surface area at todays water level. So the volume
    of 8.5 centimeters of water at 245 m asl is 0.3% lower than the volume
    at 272 m asl.

    This volume difference is negligible. And since the volume of water
    difference is negligible, the change in rate of decline of the water
    level (assuming constant inflow and outflow) will also be negligible.

    Note that this is the calculation for the entire 27 meter fall in water level
    from normal level 272 to now. The extra change in rate of water level decline
    due to a further decline now of each additional meter would be on the order of
    4% of the 0.3% for 27 meters or, truly negligble, and far less significant than normal variations in water inflow and outflow.

    Going back to paragraph (2), if the average slope of the lakesides
    is higher than 20 degrees …. not unlikely …. then the reduction in water volume is even less.

    Sleep well….
